UAV WINFLY 7
from ₴12'480
To orderAbout the product

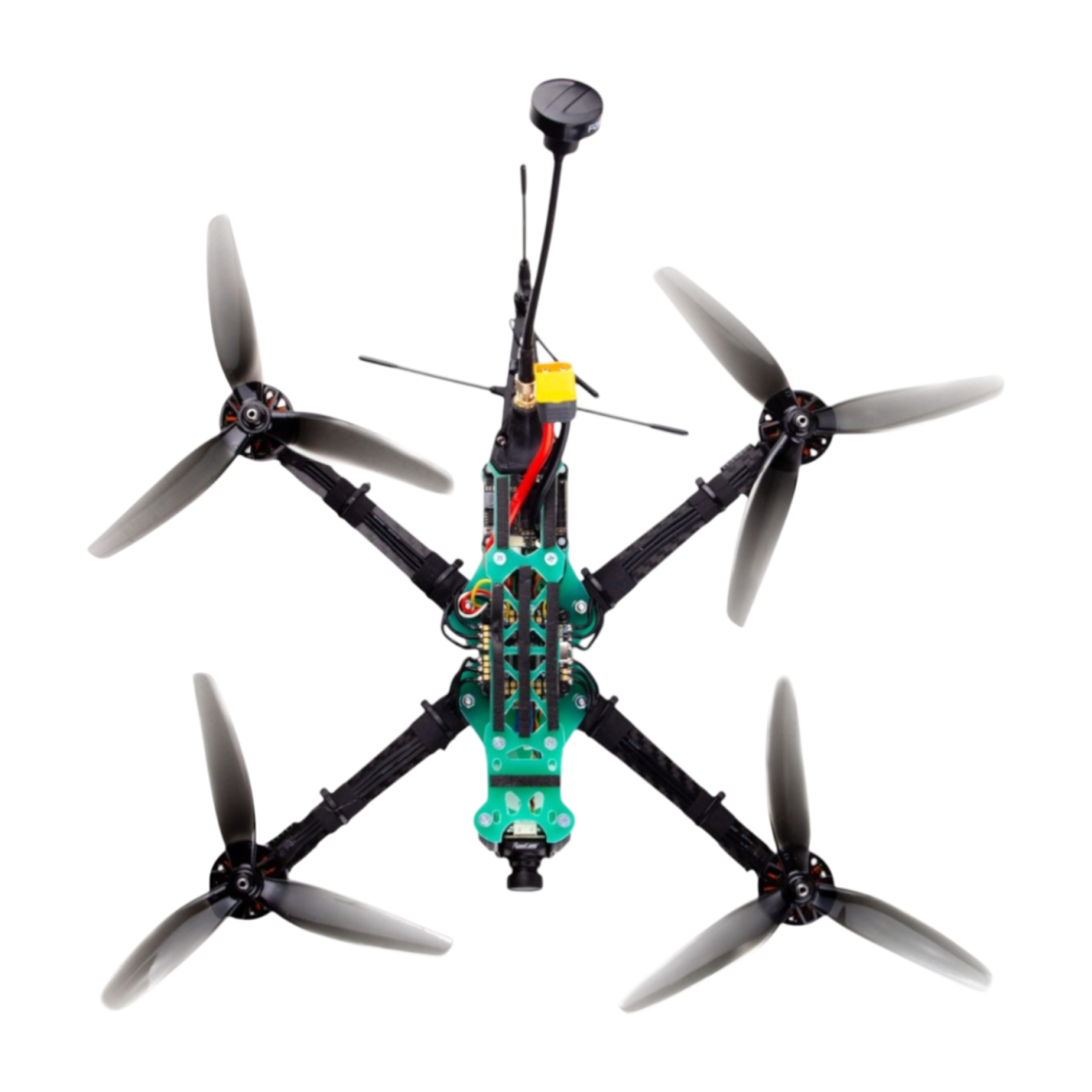

The WINFLY-7 Unmanned Aerial System is designed to perform combat missions aimed at striking enemy personnel, as well as lightly and heavily armored targets from the air, both day and night, under fair weather conditions.
-

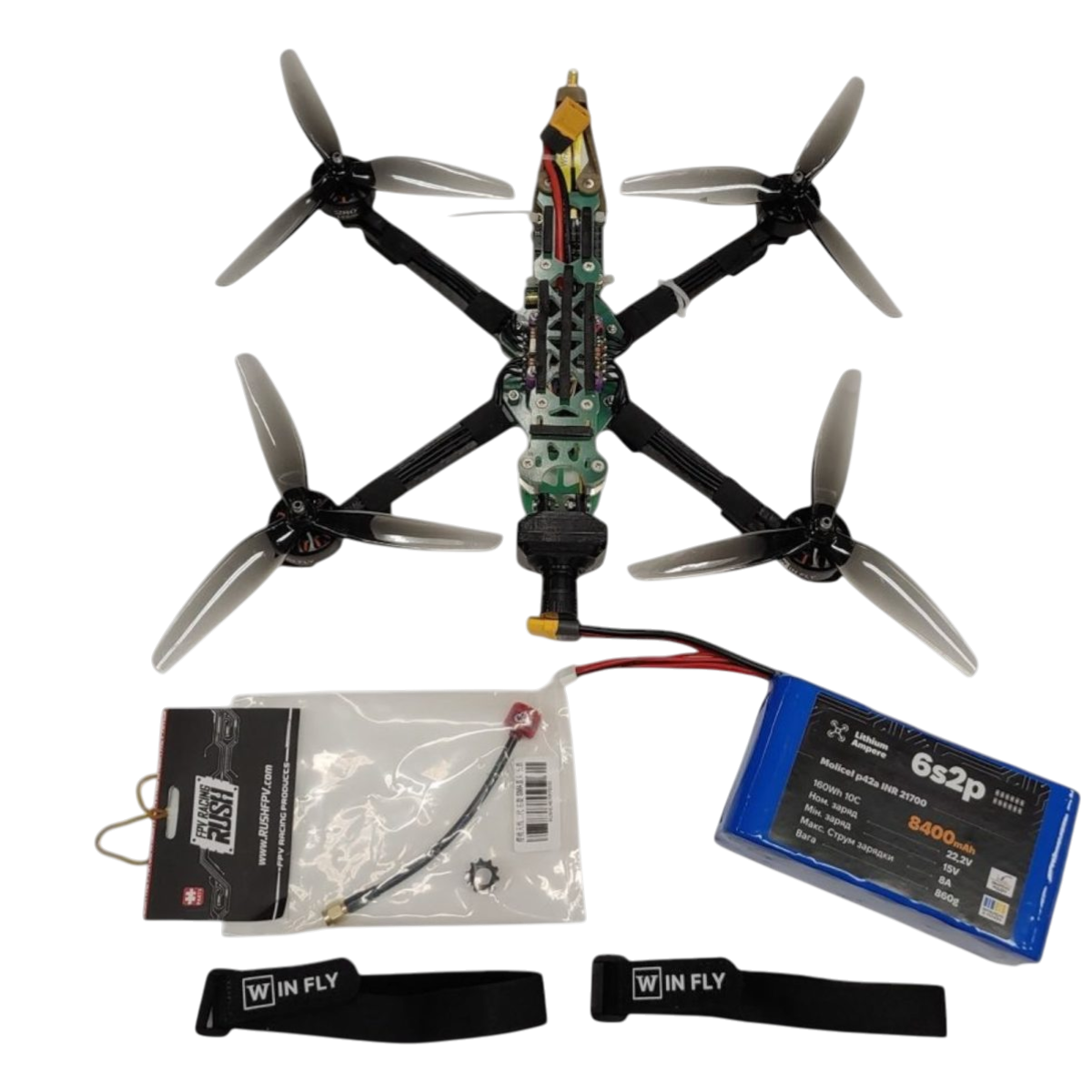

- Unmanned aerial vehicle
- Control system (supplied separately)
- Relay system (supplied separately)
- Technical documentation
The product is codified according to NATO standards!
Technical specifications
Maximum takeoff weight, kg 3.0 | Flight time, min up to 25 | ||
Maximum payload weight, kg 1.5 | UAV dimensions (W×L×H), mm 360×320×50 | ||
Tactical operating radius, km up to 20 | UAV type quadcopter | ||
Maximum flight range, km • without relay 7 • with relay 20 | Deployment and preparation time, min 2 | ||
Flight altitude, m • maximum 1000 • operational 50–500 | Target detection and recognition range (tank, vehicle, human figure), m 200 | ||
Flight speed, km/h • minimum 0 • cruise 60 • maximum 100 | Available electro-optical sensors analog video camera 1200–1800 TVL thermal camera 256 × 192 |
Complete sets

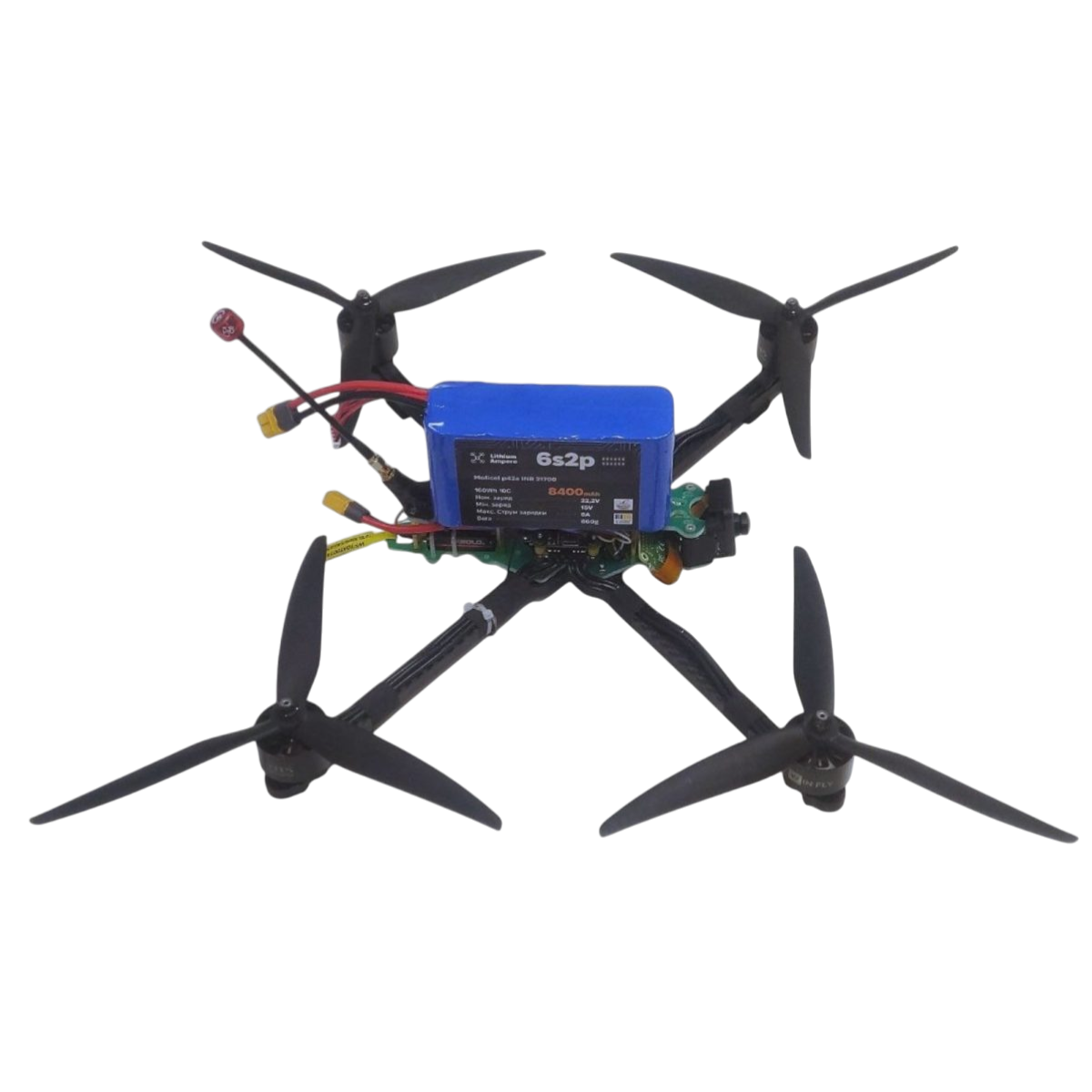

Accumulators
№ | The name of the configuration | Details |
105 | Li-Ion 6s1p 4200mAh 460g | 21700 Molicel P42A |
104 | Li-Ion 5s2p 8400mAh 750g | 21700 Molicel P42A |
106 | Li-Ion 6s2p 8400mAh 890g | 21700 Molicel P42A |
191 | Li-Ion 6s3p 12600mAh 1300g | 21700 Molicel P42A |
FAQ
Who can order drones?
Ordering drones is allowed only by military units, pilots, volunteers, foundations and training centers. Each counterparty is verified. Each purchase must be linked to the end user.
Can I order additional equipment?
Yes, most often we have the opportunity to help purchase all the necessary equipment for flights. Glasses, remotes, antennas, charging stations, whatever.
Do you provide training?
No. Currently, we do not have our own training center. But we have a wide range of partner training centers. We conduct consultations only on our products.
Do you repair drones?
So. If you have a need for modification or repair, you can contact us.
Are you a manufacturer?
So. We manufacture a number of components and assemble drones in Ukraine. Each drone goes through the setup and testing procedure in several stages. The products are guaranteed.
